TERN VEKTRON missing headlamp

TERN VEKTRON missing headlamp

2,800.00 4,900.00

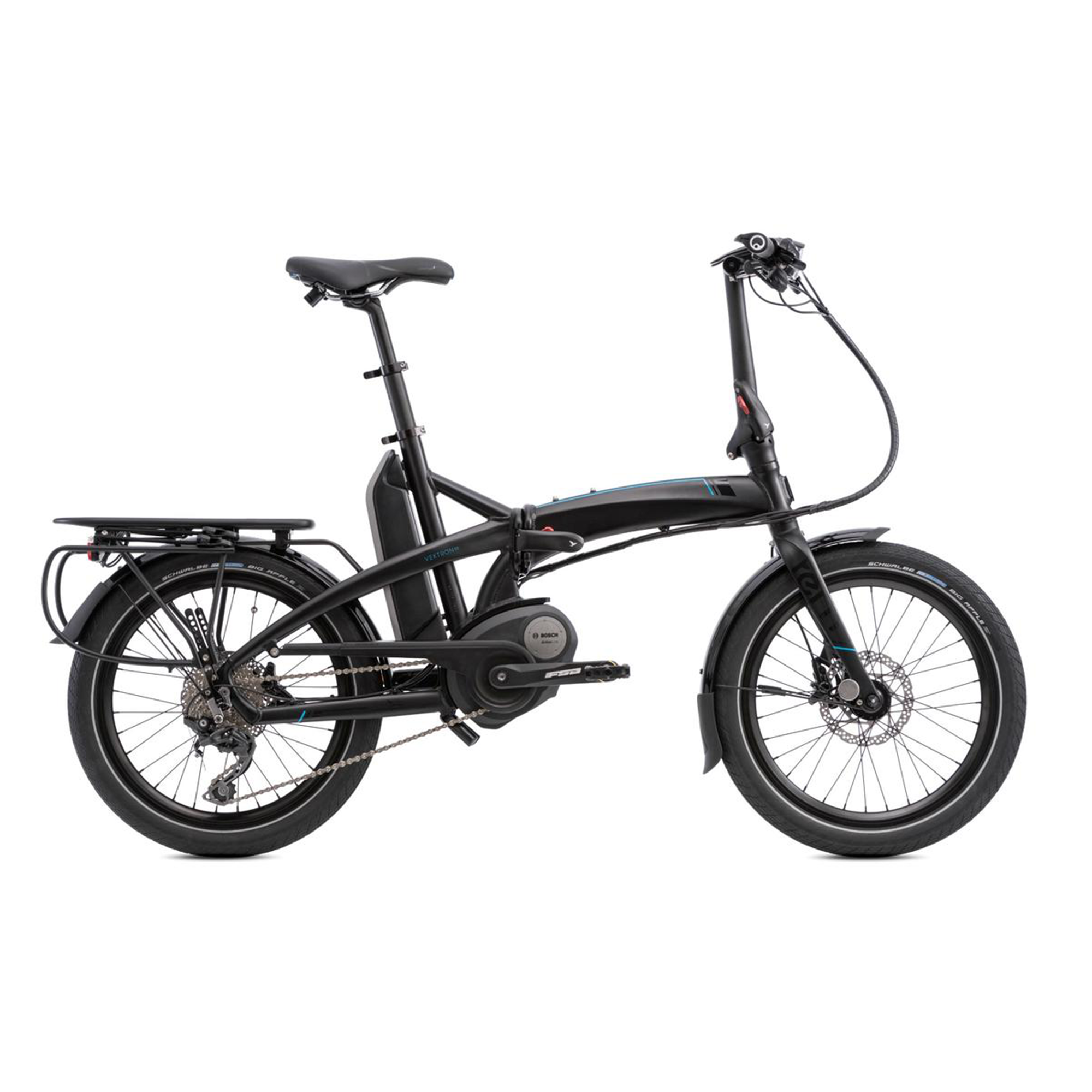

All around the world, the way we get from A to B is changing. With the world on the cusp of auto-mobility, ride sharing, and the mainstream arrival of electric vehicles, it’s an exciting moment for transportation. To help drive this force of change, we developed the world’s most compact Bosch-driven electric bike. The Tern Vektron takes everything great about folding bikes—multi-modal commuting, portability for travel and storage—and accelerates it. This E-Bike max assist 32kmh.

Add To Cart


WHEEL SIZE: 20" wheels

SPEEDS: 1 x 10

WEIGHT: 21.8 kg (48.1 lb)

DISTANCE: SEATPOST TO HANDLEBAR: Min: 630 mm (24.8") Max: 690 mm (27.2")

DISTANCE: SADDLE TO PEDAL: Min: 740 mm (29.1") Max: 1140 mm (44.9")

SUGGESTED RIDER HEIGHT: 147 - 195 cm (4'10" - 6'5")

MAX LOAD WEIGHT: 105 kg (230 lb)

FRAME: Tern Vektron, hydroformed 7005-Al, 3 patented technologies

FORK: Tern Tarsus, 6061-Al, hydroformed

HANDLEPOST: Tern Physis 3D (G2), 3D forged, 5 patented technologies

STEM: Tern Andros (G2), adjustable, forged construction, patented technology

HEADSET: Flux Pro, angular contact bearings, Physis integrated

HANDLEBAR: Kinetix Comp, double-butted 6061-Al


SADDLE: Tern Porter+, patented GripPad design, PrimeGel padding

SEATPOST: Tern Telescopic, 2014-Al, 2 pc.

SEATPOST CLAMP: Syntace OverLock

FRONT BRAKE: Shimano Deore, hydraulic disc

REAR BRAKE: Shimano Deore, hydraulic disc

BRAKE LEVERS: Shimano Deore, hydraulic disc

BRAKE CABLE & HOUSING: Shimano, hydraulic

FRONT HUB: Shimano disc

REAR HUB: Shimano disc

SPOKES AND NIPPLES: Stainless, double-butted

RIMS: Kinetix Comp, for disc

TIRES: Schwalbe Big Apple, 55-406, puncture protection, Reflex

SHIFTER(S): Shimano Deore, 1x10 spd

REAR DERAILLEUR: Shimano Deore Shadow


CASSETTE/FREEWHEEL: Shimano 11-34T, 10 spd


CHAIN: 10 spd, DHT for eBike, GST corrosion resistant coating

PEDALS: LiteForm QR, alloy body, QR right/standard left

MOTOR: Bosch Active, 36 V/250 W, max speed 20 mph(32km/h) (US)

BATTERY: Bosch 400 Wh (US)

DISPLAY: Bosch Purion, 4 mode selectable.

RANGE: up to 50 - 100 km


KICKSTAND: Rear mount, Pletscher design

FRONT LIGHT: Tern Valo Direct, integrated, 41 lux/150 lumens

REAR LIGHT: Herrmans H-Trace, for eBike

FENDERS: SplashGuard, stainless hardware

RACK(S): Tern Cargo Rack
